Specification

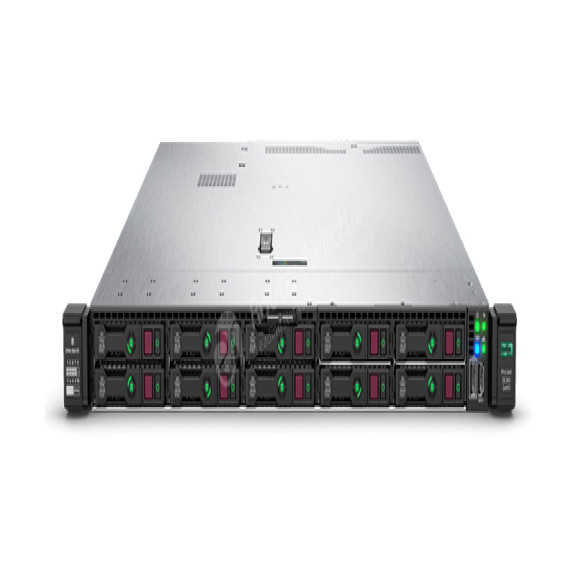

HPE DL360 Gen10 8SFF P23578-AA1 Server Overview
P23578-AA1 server is the HPE DL360 Gen10 server with Intel Xeon 4210R (2.4GHz 10-core 100W), 16GB, P408i-a, 8SFF, and 500W. HPE ProLiant DL360 Gen10 Server delivers security, agility and flexibility without compromise. It supports the Intel® Xeon® Scalable processor with up to a 71% performance gain and 27% increase in cores, along with 2666 MT/s HPE DDR4 SmartMemory supporting up to 3.0 TB2 with an increase in performance of up to 66%. With the added performance that 12 NVDIMMs and 10 NVMe bring, the HPE ProLiant DL360 Gen10 means business. Deploy, update, monitor and maintain with ease by automating essential server life cycle management tasks with HPE OneView and HPE iLO 5. Deploy this 2P secure platform for diverse workloads in space constrained environments.
- HPE DL360 Gen10 4210R (10-Core, 2.4 GHz, 100W) 1P 16G NC P408i-a 2G 8SFF 500W Svr
Note:
①
Drive support label
②
Quick removal access panel
③
Serial no. label pull tab
④
Universal Media Bay Options:
Option shown: +2 SFF SAS/SATA (total 10SFF)
Option: +2 SFF NVMe drives
Option: DVD-RW or DVD-ROM + Display port & USB 2.0 port Kit
Option: +2 Dual uFF (4x M.2 cartridges) Option: Display port + USB 2.0 port Kit + Blank
⑤
Power On/Standby button and system power LED
⑥
Health LED
⑦
NIC status LED
⑧
UID button/LED
⑨
USB 3.0 port
⑩
iLO Service Port
⑪
Standard 8 SAS/SATA/SSD drive bays
HPE DL360 Gen10 8SFF P23578-AA1 Specification
P23578-AA1 Specification
Description
HPE DL360 Gen10 4210R (10-Core, 2.4 GHz, 100W) 1P 16G NC P408i-a 2G 8SFF 500W Svr
Processor
Intel Xeon 4210R (10-Core, 2.4 GHz, 100W)
Memory
16GB
Memory Slots
24 DIMM slots
Drive Supported
8SFF
Network Controller
Embedded 4 X 1GbE Ethernet Adapter (select models) or HPE FlexibleLOM and optional PCIe stand-up cards, depending on model
Storage Controller
HPE Smart Array S100i and/or HPE Essential or Performance RAID controllers, depending on model
Product Dimensions (imperial)
SFF Chassis: 1.69 x 17.11 x 27.83 in
Product Dimensions (metric)
SFF Chassis: 4.29 x 43.46 x 70.7 cm
